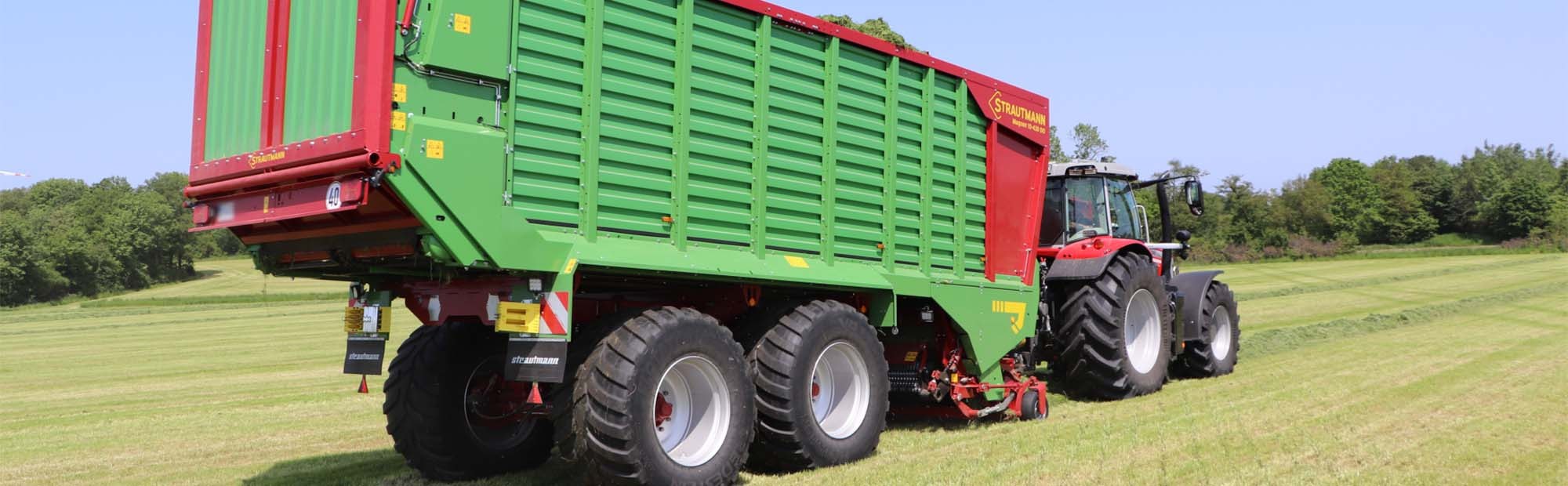

Strautmann Magnon 10
Experience the unique Flex-Load pick-up in combination with our Continous Flow System. Continous and fast flow of material with your Strautmann forage wagon. The system ensures faster, more gentle and diesel-saving charging.
Magnon 10- The new one in the premium segment
With the Magnon, Strautmann is presenting a new series in the segment of professional silage wagons with a large
number of new features. A completely new pick-up concept, the newly developed "Exact-Cut" cutting unit and the hydraulically swivelling front Panel enable top harvesting Performance.- Loading capacity 42 – 52 m³ (according to DIN 11741)
- Large-scale superstructure
- Efficient charging
Unique - The Flex-Load pick-up
Minimum wear and optimum adaptation to ground due to the innovative Flex-Load pick-up with plastic tines
Continuous Flow System
- the system for efficient charging
Due to the interaction of different components, the continuous flow unit ensures excellent performance with little power required. Pick-up, flow roller, rotor and Exact-Cut cutting unit are ideally matched to each other and complement each other perfectly. This results not only in excellent silage quality but also in easy towing, thus saving power, money and time. Technical modifications reserved.
Rotor and cutting unit
- For optimum fodder quality
- Conveying width of 1.75 m with 8 helical tine rows
- Helically arranged
- Wide swathes are compactly conveyed to the conveyor duct
Superstructure & floor
- Solid all-steel superstructure
- Hydraulically swivelled front panel
- Easy access
- Optimum filling degree
- Practical maize plate
Chassis
Different chassis options ensure optimum driving comfort and safety at any time:
- Hydraulic tandem chassis
- Hydraulic tridem chassis
- Passive steering axle
- Mechanical & Electronic forced steering axle
Operation
- Intuitive and comfortable ISOBUS Operation via tractor terminal as standard
- right-hand terminal Smart 570 as an option
- 5.7" coloured screen
- Optimum control of the charging and discharging process and safe road travel
- Numerous automatic functions ensuring intuitive and comfortable machine operation
Dimensions (with 710/50 R 26,5 tyres) Length (m) 9,90 10,53 11,78 Outside wheel width (m) 2,81 2,81 2,81 Height (m) 3,90 3,90 3,90 Type Magnon 10 430u00a0(without beaters / withbeaters) Magnon 10 470u00a0(without beaters / withbeaters) Magnon 10 530u00a0(without beaters / withbeaters) Cargo space dimensions Height (without extension 90 mm) (m) 2,08 2,08 2,08 Width (m) 2,40 2,40 2,40 Length (m) 7,17 7,80 9,05 Dead weight, standard equipment (kg) 11.100 11.700 13.600 Gross vehicle weight rating Gross vehicle weight rating (kg) 24.000 24.000 34.000 Power required from (KW / HP) 140 / 190 154 / 210 176 / 240 Loading capacity (medium compression) (mu00b3) 74 / 78 82 / 86 93 / 97 Loading capacity according to DIN 11741 (mu00b3) 42 / 40 46 / 44 52 / 50 Additional data Conveying unit type Rotor Rotor Rotor Picking-up width of pick-up (m) 2,25 2,25 2,25 Number of knives (pcs) 48 48 48 Theoretical cutting length (mm) 35 35 35
