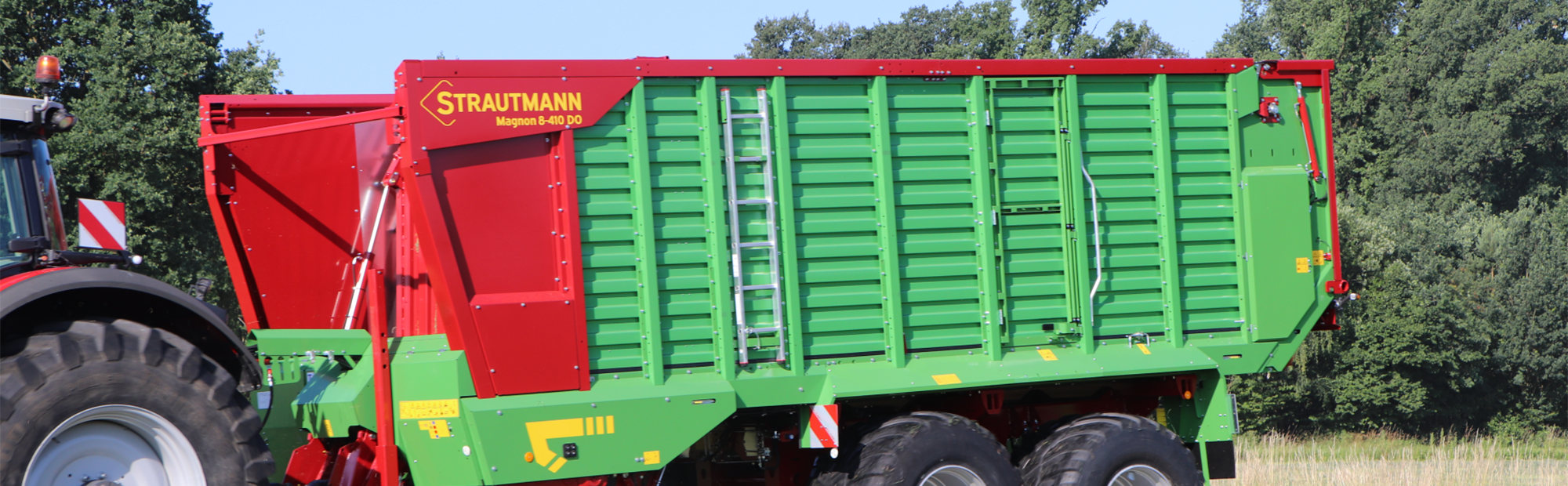

Strautmann Magnon 8

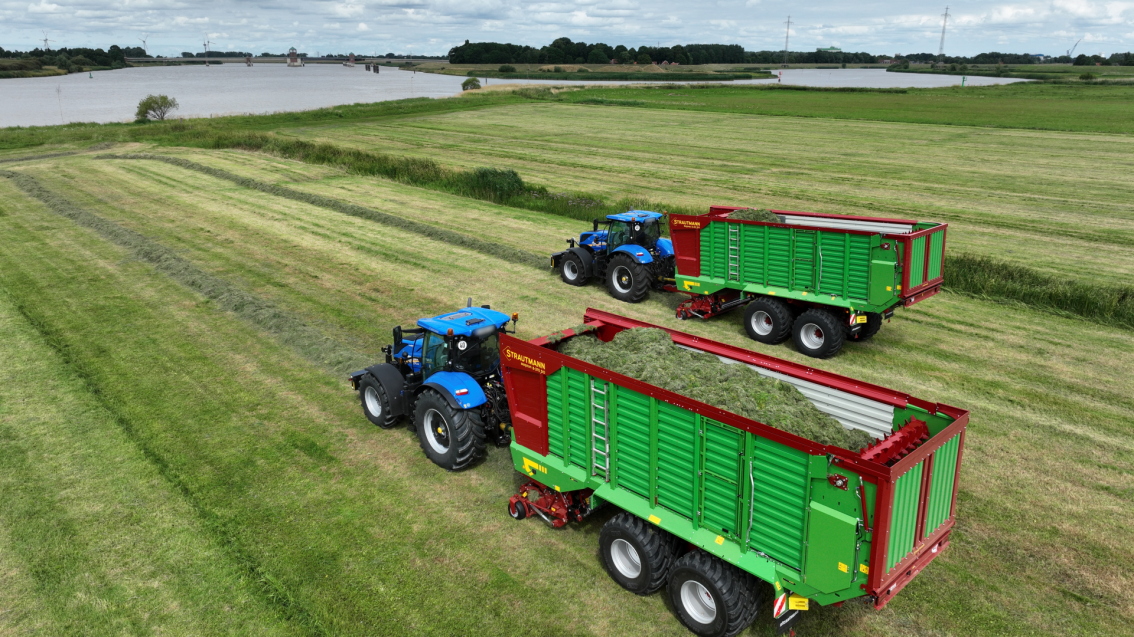

The Magnon series is known for high harvesting performance and is impressive at the silo with high unloading speeds thanks to the proven swivelling front wall. This makes this forage wagon generation unrivalled in terms of throughput and impact. The Magnon 8 now brings these advantages in a compact design.

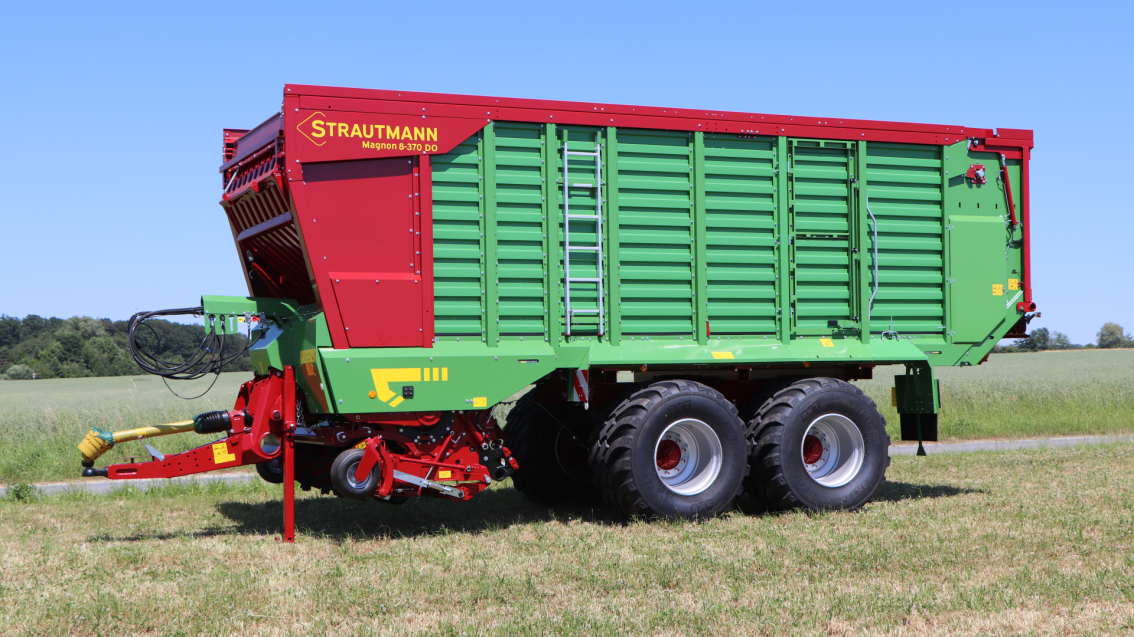

Magnon 8 - Enormous loading capacity with compact design
The Magnon series is known for high harvesting performance and is impressive at the silo with high unloading speeds thanks to the proven swivelling front wall. This makes this forage wagon generation unrivalled in terms of throughput and impact. The Magnon 8 now brings these advantages in a compact design.
- 3 models with 36, 40 and 44 m³ load volume
- Cutting length of 35 mm
- Well-known Continuous Flow loading unit
- Flex-Load Pick-up
Unique - The Flex-Load pick-up
Minimum wear and optimum adaptation to ground due to the innovative Flex-Load pick-up with plastic tines
Continuous Flow System
- the system for efficient charging
Due to the interaction of different components, the Continuous Flow System ensures excellent performance with little power required. Pick-up, Continuous Flow roller, rotor and Exact-Cut cutting unit are ideally matched to each other and complement each other perfectly. This results not only in excellent silage quality but also in easy towing, thus saving power, money and time. Technical modifications reserved.
Rotor and cutting unit
- High loading capacity and best forage quality
- 2.10 m total width with 8 tine rows
- Spiral-shaped conveyor tines
- Wide swathes are compactly conveyed to the conveyor duct
- Standard 44 knives with two cutting edges each for double service life
- Cutting length of 35 mm
Superstructure & floor
- Solid all-steel superstructure
- Hydraulically swivelled front panel
- Easy access
- Optimum filling degree
- Steel floor
- Practical maize plate
Chassis
Different chassis options ensure optimum driving comfort and safety at any time:

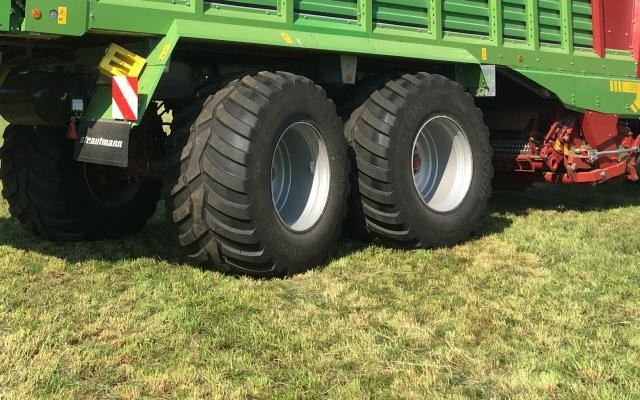

- Boogie tandem chassis as standard
- Hydraulic tandem chassis

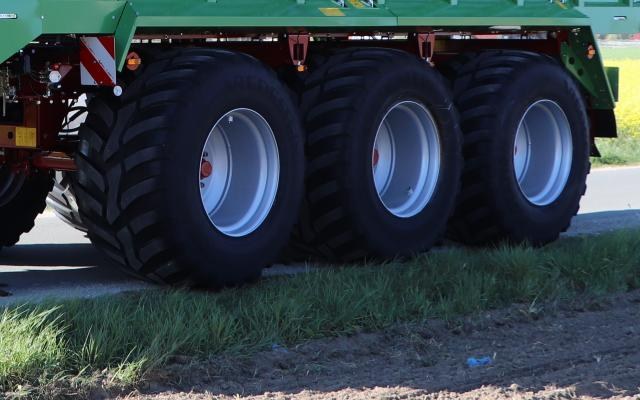

- Hydraulic tridem chassis

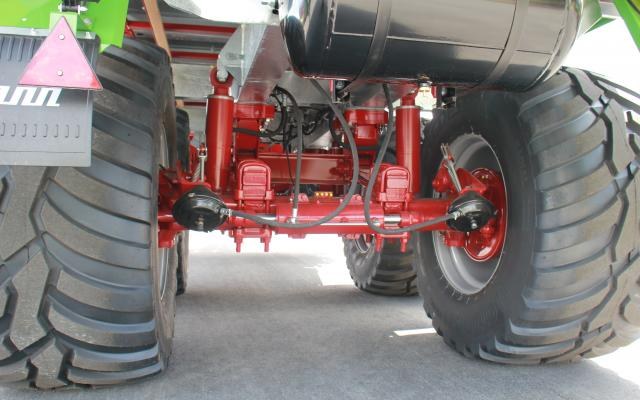

- Passive steering axle
- Mechanical & Electronic forced steering axle
Operation
- Intuitive and comfortable ISOBUS Operation via tractor terminal as standard
- right-hand terminal Smart 570 as an option
- 5.7" coloured screen
- Optimum control of the charging and discharging process and safe road travel
- Numerous automatic functions ensuring intuitive and comfortable machine operation
Dimensions (tyres 710/50 R 26,5) Length (m) 9,25 9,90 10,53 Outside wheel width (m) 2,81 2,81 2,81 Heigth (m) 3,90 3,90 3,90 Type Magnon 8-370 without DO / with DO Magnon 8-410 without DO/ with DO Magnon 8-450 without DO/ with DO Cargo space dimensions Heigth (m) 2,08 2,08 2,08 Height with attachment (m) 2,17 2,17 2,17 Width (m) 2,25 2,25 2,25 Length (m) 6,52 7,17 7,80 Loading capacity Loading capacity according to DIN ([mu00b3]) 36 40 44 Loading capacity, medium compression ([mu00b3]) 67 74 81 Tare weight Tare weight from ([kg]) 10.100 10.700 11.300 Gross vehicle weight rating Gross vehicle weight rating standard ([kg]) 22.000 22.000 24.000 Gross vehicle weight rating optional ([kg]) 24.000 24.000 31.000 Power requirement Power required from 110 kW / 150 HP 125 kW / 170 HP 140 kW / 190 HP Additional data Conveying unit type Rotor Rotor Rotor Picking-up width of pick-up (m) 2,25 2,25 2,25 Number of knives (pcs) 44 44 44 Theoretical cutting length (mm) 35 35 35
