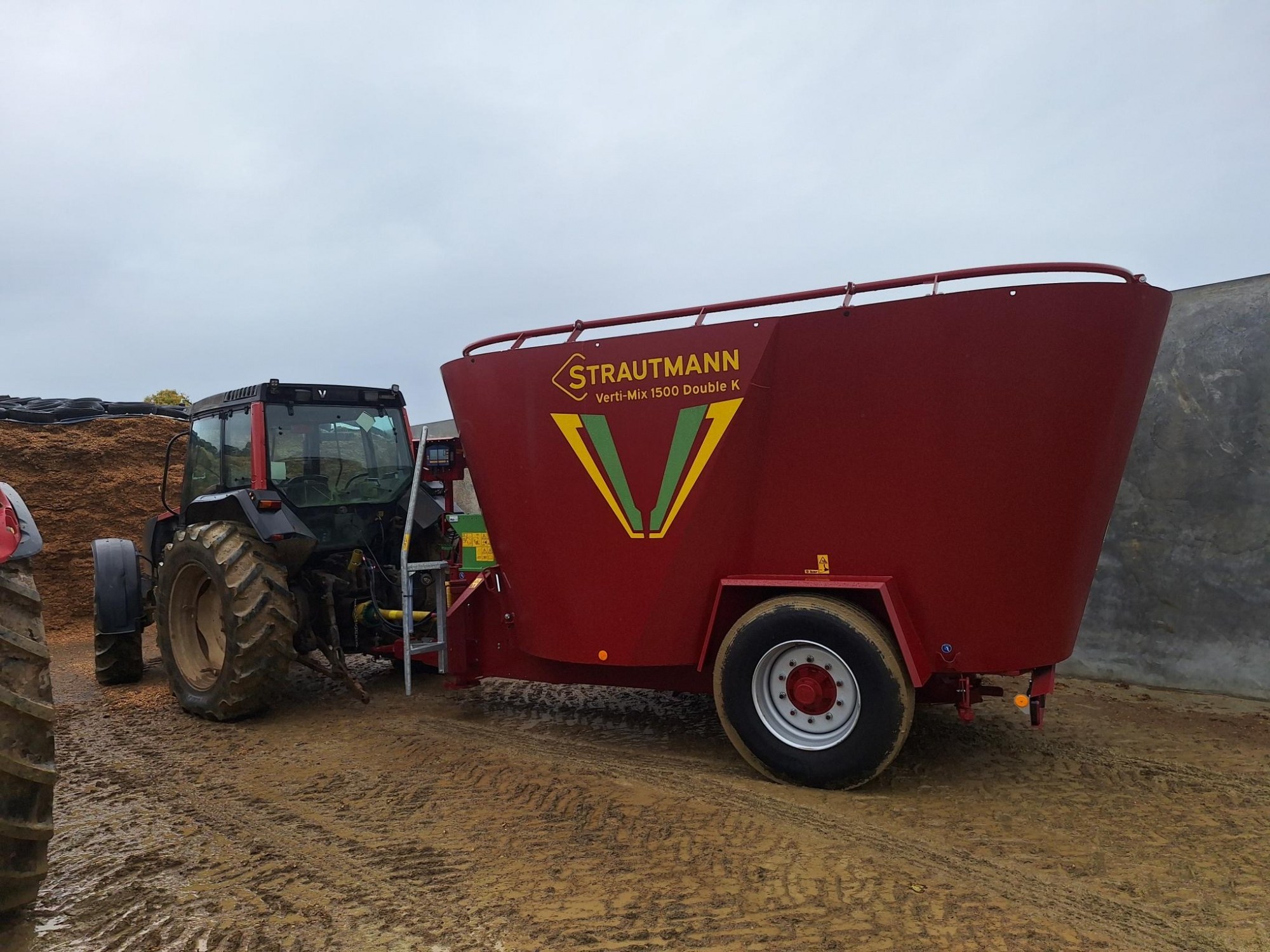

Strautmann Verti-Mix Double K
Due to the patented knife adjustment system, the IMS mixing auger can be perfectly adapted to your specific conditions of use. The robust and low-maintenance angular gear ensures a long service life even under challenging conditions.
Verti-Mix Double K - The easy-towing all-rounder
- Usable mixing capacity of 13-21 m³
- Unique container shape for low design
- 100-300 cows per container filling
- Power required from 50-66 HP (37-49 kW)
The IMS mixing auger – Variability and strength for any purpose
Due to the patented knife adjustment system, the IMS mixing auger can be perfectly adapted to your specific conditions of use. The robust and low-maintenance angular gear ensures a long service life even under challenging conditions.
- Low power requirement
- Optimum fodder structure
- Homogeneous mixing
- Energy-saving short mixing times
Discharge options - adapted to your enterprise
Operating and weighing - Take your choice
Strautmann responds to individual customer demands also with regard to the kind of operating device. The selection of the operating option depends on the user‘s requirements.
Type Verti-Mix 1300 Double K (315/80 R 22,5) Verti-Mix 1500 Double K (315/80 R 22,5) Verti-Mix 1800 Double K (385/65 R 22,5) Dimensions Length (m) 5,80 5,87 6,28 Height (m) 2,36 2,58 2,61 Width with crossover conveyor (m) 2,16 2,16 2,42 Width with one-sided discharge (m) 2,28 2,28 2,54 Width with two-sided discharge (m) 2,38 2,38 2,64 Outside wheel width (m) 2,17 2,17 2,45 Length with rear crossover conveyor (m) 5,97 5,97 6,41 Discharge height, crossover conveyor (m) 0,57 0,57 0,57 Distance Centre of drawbar lug - Centre of axle (m) 3,96 3,96 4,27 Dead weight approx. (kg) 4.860 5.330 6.150 Gross vehicle weight rating Admissible tongue load (kg) 1.800 1.800 2000 Technically admissible gross vehicle weight rating 15 km/h, single axle (kg) 13.800 13.800 16.000 Technically admissible gross vehicle weight rating 25 km/h (StVZO) single axle (kg) 11.800 11.800 12.000 Power required from without switching gear 26 rpm/min (HP) 70 87 99 with switching gear 14,4/26 rpm/min (HP) 50 54 61 without switching gear 30 rpm/min (HP) 92 99 111 with switching gear 16,7/30 rpm/min (HP) 56 61 69 Usable mixing capacity (m³) 13 15 18 Axle Track width (mm) 1.850 1.850 2.060 Container Container wall thickness (mm) 8 8 8 Bottom plate (mm) 20 20 20 Container length inner dimension incl. overflow ring (m) 4,28 4,42 4,83
