Strautmann Sherpa
Due to the patented knife adjustment system, the IMS mixing auger can be perfectly adapted to your specific conditions of use. The robust and low-maintenance angular gear ensures a long service life even under challenging conditions.

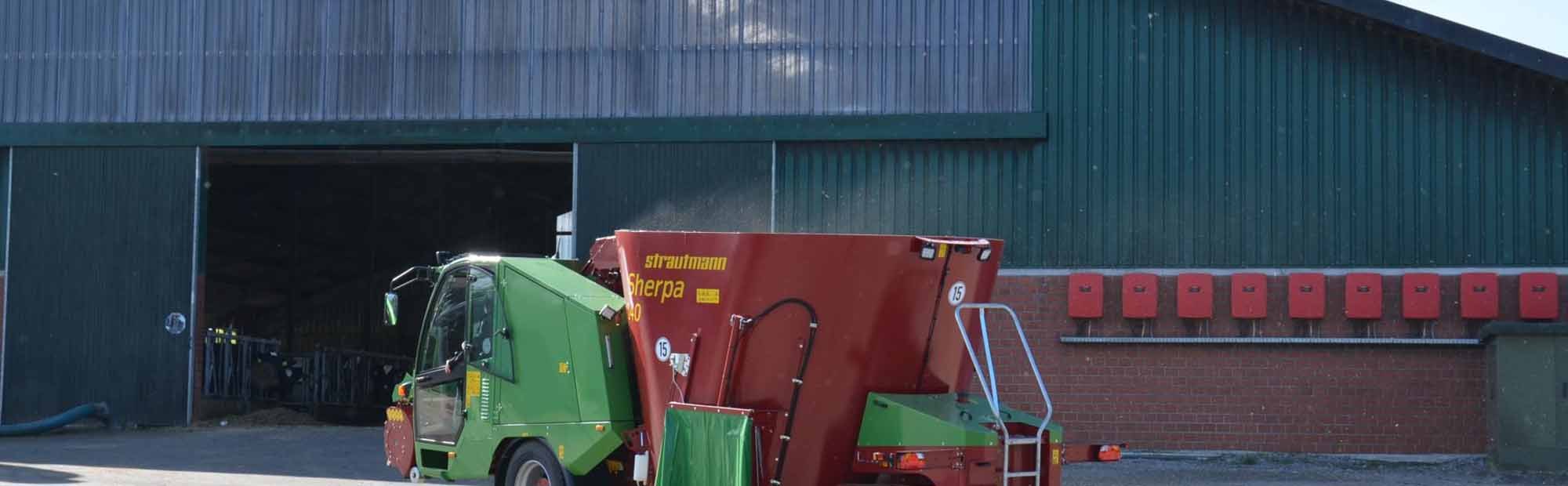

Sherpa - The entry-level model
- Usable mixing capacity of 12 - 14 m³
- Picking-up, mixing & feeding with one machine
- Available with efficient milling cutter
The IMS mixing auger – Variability and strength for any Purpose
Due to the patented knife adjustment system, the IMS mixing auger can be perfectly adapted to your specific conditions of use. The robust and low-maintenance angular gear ensures a long service life even under challenging conditions.
- Low power requirement
- Optimum fodder structure
- Homogeneous mixing
- Energy-saving short mixing times
Fast & efficient - The Pick-up milling cutter
- High-performance milling cutter equipped with 60 cranked knives for gentle picking-up and optimum cut surface shape
- Clean and fast picking-up of loose bulk materials and all kinds of silage
- Reversing option of conveyor duct, when the desired weight is reached to convey excess fodder back to the feed storage area
Discharge Options - adapted to your Enterprise
Weighing and operating
Engine and drive line
- 4-cylinder turbo diesel engine
- Strong performance with low consumption
- With Charge-air cooling(John Deere Emissions Level IV)
- 104 kW/ 141 HP with 2000 rpm, 556 Nm with 1400 rpm
Dimesnions Length (m) 8,25 8,25 Height (m) 2,52 2,77 Width with one discharge door (m) 2,52 2,52 Type Sherpa 120 Sherpa 140 Width with two discharge doors (m) 2,62 2,62 Outer Wheel width front (m) 2,31 2,31 Outer Wheel width rear (m) 1,94 1,94 Diameter of loading drum (m) 0,61 0,61 Width of elevator arm (m) 0,58 0,58 Working width (m) 2,00 2,00 Removal height (m) 4,50 4,50 Tare weight from (kg) 10.200 10.300 Volume - usable mixing capacity (mu00b3) 12,0 14,0 Axle - Wheel base (m) 3,86 3,86
